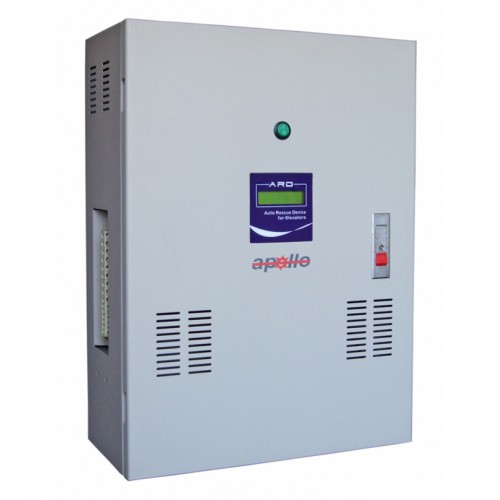

ARD-10

Product Description: Auto Rescue Device for Elecator (UPS)

Model: ARD-10

Capacity: 5.5 kW

AC Input: 415V / 220VAC + 15% - 20% Three Phase Input. 50/60Hz ± 10%

DC Voltage: 48Vdc

Charger Type: Controlled Rectifier CVCC

Charging Time: 10 Hours for 90% of Full Battery Capacity

Technology: IGBT based PWM Sine Wave

Output Voltage: 400V / 415V / 200Vac Three Phase 50/60Hz ± 0.1Hz

Inverter Efficiency: 85%

Overload: 105% continuous

Harmonic Distortion: <3% on Linear load

Crest Factor: 4:1

Power Factor: 0.8

Phase Displacement: 120° ± 1°

Dimension (LxWxD): 530x400x195mm.

LCD Display: AC normal, Inverter normal,Batter low, Overload

Protection:  Output Overload & Short circuit, DC Under & Over Voltage
